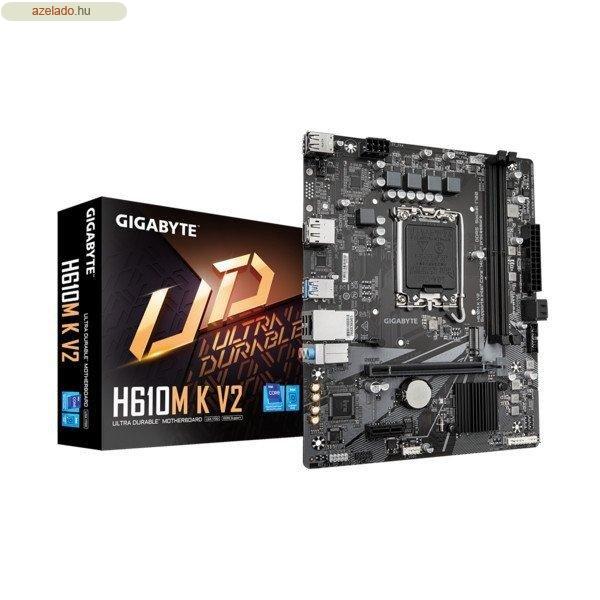

GIGABYTE Alaplap S1700 H610M K V2 INTEL H610, mATX CPU LGA1700 socket:
Support for the 14th, 13th, and 12th Generation IntelŽ Core?, PentiumŽ Gold and
CeleronŽ Processors * Please refer to CPU Support List for more information.
L3 cache varies with CPU Chipset IntelŽ H610 Express Chipset Memory
14th and 13th Generation IntelŽ Core? i9/i7 Pocessors: - Support for DDR5
5600/5200/4800/4400 MT/s memory modules 13th Generation IntelŽ Core? i5/i3 and
12th Generation IntelŽ Core?, PentiumŽ Gold and CeleronŽ Processors: - Support
for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to
128 GB (64 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate
in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and
memory configuration may affect the supported memory types, data rate (speed),
and number of DRAM modules, please refer to Memory Support List on GIGABYTE's
website for more information.) Onboard Graphics Integrated Graphics
Processor-IntelŽ HD Graphics support: - 1 x HDMI port, supporting a maximum
resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. **
Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting
a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version
and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio RealtekŽ Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You
can change the functionality of an audio jack using the audio software. To
configure 7.1-channel audio, access the audio software for audio settings.
LAN RealtekŽ GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: -
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage
Interface Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe
3.0 x4/x2 SSD support) - 2 x SATA 6Gb/s connectors USB Chipset: - 4 x
USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the
internal USB header) - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2
ports available through the internal USB header) Internal I/O Connectors 1
x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU
fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s
connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2
Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For
the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear
CMOS jumper Back Panel Connectors 1 x HDMI port 1 x DisplayPort 2 x USB
3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O
Controller iTEŽ I/O Controller Chip H/W Monitoring Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection
Fan fail warning Fan speed control * Whether the fan speed control function
is supported will depend on the fan you install. BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 Unique Features Support for APP Center * Available applications in
APP Center may vary by motherboard model. Supported functions of each
application may also vary depending on motherboard specifications. - @BIOS -
EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Bundled Software NortonŽ Internet Security (OEM version) LAN bandwidth
management software Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6cm x
18.5cm
