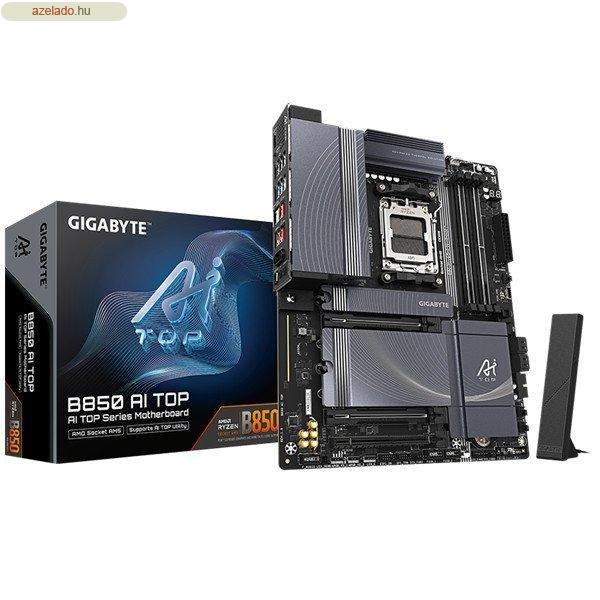

GIGABYTE Alaplap AM5 B850 AI TOP AMD B850, ATX CPU AMD Socket AM5, support
for: AMD Ryzen? 9000 Series Processors/ AMD Ryzen? 8000 Series Processors/
AMD Ryzen? 7000 Series Processors (Go to GIGABYTE's website for the latest CPU
support list.) Chipset AMD B850 Memory Support for DDR5 8600(OC)/
8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4
x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of
system memory Dual channel memory architecture Support for ECC and non-ECC
Un-buffered DIMM memory modules Support for AMD EXtended Profiles for
Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules (The
CPU and memory configuration may affect the supported memory types, data rate
(speed), and number of DRAM modules, please refer to Memory Support List on
GIGABYTE's website for more information.) Onboard Graphics Integrated
Graphics Processor with AMD Radeon? Graphics support: - 1 x USB Type-CŽ port,
supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution
of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x
HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for
HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS
compatible ports. (Graphics specifications may vary depending on CPU
support.) Audio RealtekŽ ALC1220 CODEC * The back panel line out jack
supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can
change the functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings. Support for
S/PDIF Out LAN 2 x MarvellŽ AQtion AQC113C 10GbE LAN chips (10 Gbps/5
Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module RealtekŽ
Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz
carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless
standard (Actual data rate may vary depending on environment and equipment.) *
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no
support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability
depends on individual country's regulations. Expansion Slots 1 x PCI
Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen? 9000/7000 Series
Processors support PCIe 5.0 x16 mode AMD Ryzen? 8000 Series-Phoenix 1
Processors support PCIe 4.0 x8 mode AMD Ryzen? 8000 Series-Phoenix 2 Processors
support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16
slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8
mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an
NVMe SSD. If only one graphics card is to be installed, be sure to install it in
the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen? 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8
slot become unavailable when an AMD Ryzen? 8000 Series-Phoenix 1/ Phoenix 2
processor is used. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0
and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the M2C_SB
connector. The PCIEX2 slot becomes unavailable when a device is installed in the
M2C_SB connector. Storage Interface 1 x M.2 connector (M2A_CPU),
integrated in the CPU, supporting Socket 3, M key, type, type
25110/22110/2580/2280 SSDs: AMD Ryzen? 9000/7000 Series Processors support PCIe
5.0 x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0
x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2
SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,
M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzen? 9000/7000 Series
Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 1
Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 2
Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in
the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2
SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for
NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen? 9000 Series
Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU: - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB
Type-CŽ port on the back panel, with USB 3.2 Gen 2 support (Note) CPU+USB 2.0
Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-CŽ
port with USB 3.2 Gen 2x2 support, available through the internal USB header -
2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB
2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1
Hub: - 4 x USB 3.2 Gen 1 ports on the back panel (Note) This USB Type-CŽ
port supports a maximum speed of 40 Gbps. Actual support may vary by CPU.
Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V
power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x
system fan headers 2 x system fan/water cooling pump headers 3 x addressable
RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio
header 1 x USB Type-CŽ header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1
header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted
Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2
module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear
CMOS jumper 2 x temperature sensor headers Back Panel Connectors 1 x
Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port (Note) 1
x USB Type-CŽ port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 4
x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical
S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller iTEŽ I/O Controller Chip H/W Monitoring Voltage
detection Temperature detection Fan speed detection Water cooling flow rate
detection Fan fail warning Fan speed control * Whether the fan (pump) speed
control function is supported will depend on the fan (pump) you install.
Noise detection BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP
1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for
GIGABYTE Control Center (GCC) * Available applications in GCC may vary by
motherboard model. Supported functions of each application may also vary
depending on motherboard specifications. Support for Q-Flash Support for
Q-Flash Plus Support for Smart Backup Bundled Software NortonŽ Internet
Security (OEM version) LAN bandwidth management software Operating System
Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x
24.4cm
